VIDEO
Processing: 4:4:4 (Y/Pb/Pr, RGB)/10 bits, 4:2:2 (Y/Pb/Pr)/10 bits
Input Connectors: HDMI: HDMI type A x 4 (HDMI INPUT 1--4)
* HDCP Supported
Output Connectors: HDMI: HDMI type A x 2 (HDMI OUTPUT 1--2)
* HDCP Supported
Formats: 480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
*Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
*Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
(*1) Input only.
(*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
Composition: Layer - 1
Transition: Black-insert, Mix, Cut
Still Image Internal Memory - 1
Maximum Size: 1920 x 1200 pixels
Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
AUDIO
Sample Rate: 48 kHz, 24 bits
Input Connectors: HDMI: HDMI type A x 4, AUDIO INPUT: RCA pin type
Output Connectors: HDMI: HDMI type A x 2, AUDIO OUTPUT: RCA pin type, PHONES: Stereo mini type
Input Level: AUDIO INPUT: -10 dBu (Maximum: +8 dBu)
Input Impedance: AUDIO INPUT: 15 k ohms
Output Level: AUDIO OUTPUT: -10 dBu (Maximum : +8 dBu), PHONES: 72 mW + 72 mW (32 ohms)
Output Impedance: AUDIO OUTPUT: 1 k ohm, PHONES : 10 ohms
Formats HDMI: Linear PCM, 24 bits, 48 kHz, 2 ch
Processing Mixer: 4 ch x 2 (Delay: Maximum 250 ms, Audio Follow)
OTHERS

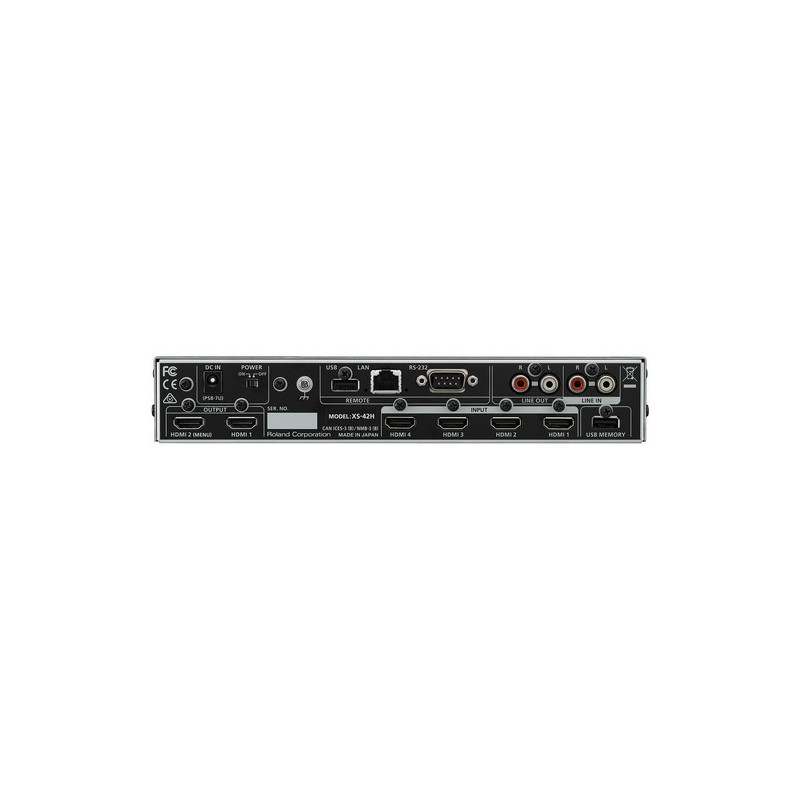

External Connectors: REMOTE, RS-232: DB-9 type (Male) x 1, LAN: RJ45 x 1, USB: USB A type x 1 (Use for future expansion), USB MEMORY: USB A type x 1 (Use for USB Memory)
Functions: Scene Memory: 10, Test Pattern Generator, Test Tone Generator, EDID Emulator
Power Supply: AC Adaptor
Current Draw: 2.1 A
Power Consumption: 25 W
Operation Temperature+0 to +40 degrees Celsius
Dimensions: 242 (W) x 125 (D) x 44 (H) mm
Weight: 1.2 kg

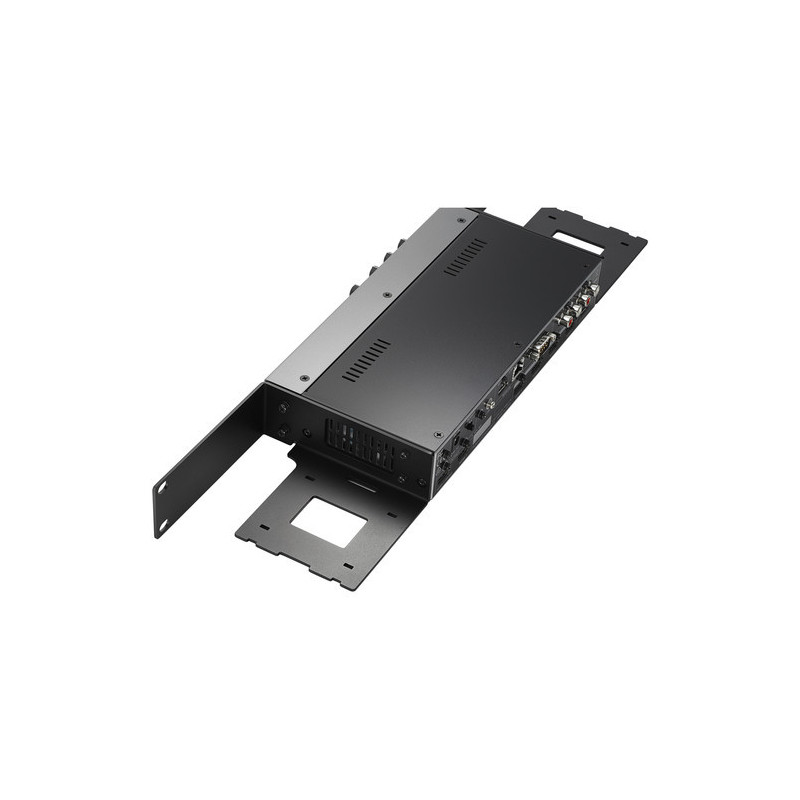

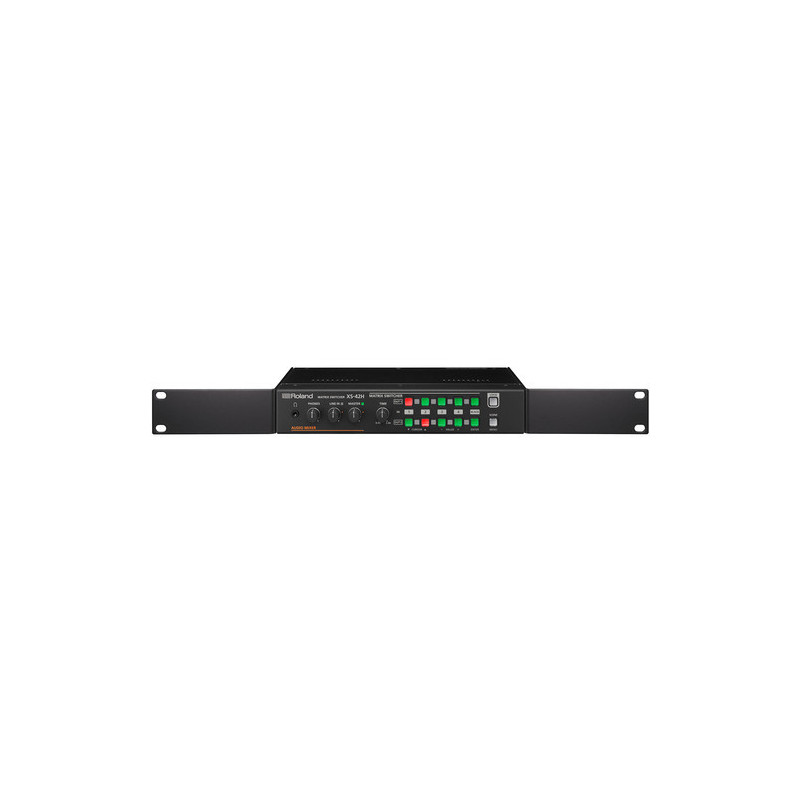

Accessories: Owner’s Manual, Leaflet “USING THE UNIT SAFELY”, AC adaptor, Power cord, Rubber feet (4 pcs.), Rack mount angle set
